Product Description

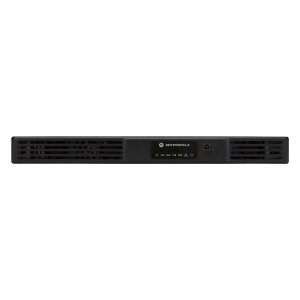

At a Glance: The Motorola MOTOTRBO™ SLR 5700-UD (AAR10QCGANQ1BN) is a high-efficiency 1–50 watt continuous-duty UHF digital repeater engineered into an ultra-slim 1U rack-mount chassis. Supporting both analog and TDMA digital DMR operations, it doubles channel capacity and extends reliable voice and data coverage across large facilities, multi-story buildings, and campus-wide networks.
The Motorola SLR 5700-UD represents the next generation in commercial RF infrastructure, offering 10x more processing power, 15x more memory, and 125x more data storage than legacy repeaters like the XPR 8300 and XPR 8400. Engineered for 100% continuous duty cycles at full 50-watt power output, this repeater delivers round-the-clock reliability for enterprise manufacturing plants, commercial real estate, healthcare centers, and educational campuses.
With integrated dual-protocol operation (Dynamic Mixed Mode), the SLR 5700 allows organizations to seamlessly bridge legacy analog two-way radios with modern digital MOTOTRBO fleets. Its field-replaceable modular architecture (separate Power Amplifier, Power Supply, and Modem modules) drastically reduces downtime and simplifies long-term maintenance.
Key Features & Operational Benefits
- 100% Continuous Duty Cycle (1–50W): Tested under grueling thermal conditions to deliver uninterrupted full-power transmission 24/7/365 without thermal throttling.
- Space-Saving 1U Form Factor: Slim 1.75" rack-mount height conserves valuable server rack real estate, power consumption, and cooling costs in crowded telecommunications rooms.
- Two Simultaneous Voice/Data Channels: Utilizes 2-slot TDMA DMR technology to double your communication capacity on a single licensed 12.5 kHz repeater frequency.
- Dynamic Mixed Mode (Analog & Digital): Automatically switches between analog FM and digital DMR modes depending on the received signal, allowing gradual fleet transitions without equipment lockouts.
- Built-In 3A Battery Charger & Revert: Features an integrated float-charging circuit and seamless DC battery revert for uninterrupted operations during primary AC grid failures.
- Remote Diagnostics, Alarms, and Control (RDAC): Monitor temperature, voltage, VSWR, and performance metrics across IP networks without sending technicians into the field.
Technical Specifications
| Manufacturer | Motorola Solutions |
| Model Series | MOTOTRBO™ SLR 5000 Series (SLR 5700-UD) |
| Manufacturer Part Number (MPN) | AAR10QCGANQ1BN |
| Frequency Band | UHF Range 1 (450 – 512 MHz) |
| RF Power Output | 1 – 50 Watts (Continuous Duty) |
| Channel Capacity | 64 Channels |
| Form Factor | Standard 1U Rack-Mount (19-inch rack compatible) |
| System Architectures Supported | Conventional, IP Site Connect, Capacity Plus Single/Multi-Site, Capacity Max, Connect Plus |
| Operating Voltage | 100–240 VAC (50/60 Hz) or 11.0–14.4 VDC (Battery Revert) |
| Connectors / Interfaces | Tx/Rx: N-Female; 2x RJ45 Ethernet; DB25 Accessory/GPIO; USB Type-B |
| Dimensions (H x W x D) | 1.75" x 19.0" x 14.6" (44 x 483 x 370 mm) |
| Weight | 19 lbs (8.6 kg) |
| Warranty | Motorola 2-Year Limited Manufacturer Warranty |
What’s in the Box
- 1x Motorola MOTOTRBO™ SLR 5700-UD UHF Repeater
- 1x AC Standard Power Cable
- 1x Standard 19" Server Rack Mounting Brackets & Hardware Kit
- 1x Quick Start Guide & Official Motorola Warranty Documentation
Recommended Deployment Accessories
- Duplexers & Filtering: Internal/External 6-cavity UHF bandpass notch duplexer for single-antenna operation.
- Surge Protection: PolyPhaser N-Female inline RF lightning arrestor.
- Battery Backup: 12V Deep-cycle AGM battery backup with auto-revert cable harness.
Frequently Asked Questions
Q: Does the Motorola SLR 5700-UD require an FCC Part 90 license?
A: Yes. Because the SLR 5700-UD operates between 450 and 512 MHz at power levels up to 50 watts, an FCC commercial Part 90 frequency coordination and license are required. HiTech Wireless provides turnkey FCC licensing assistance—call 888-511-5162 for support.
Q: Can this repeater connect multiple facility sites together over the internet?
A: Yes. With integrated IP Site Connect support, you can link up to 15 repeaters across different physical sites or buildings using a standard WAN/LAN internet connection to create a unified coverage umbrella.
Q: Does the SLR 5700 replace older Motorola XPR 8300 and XPR 8400 repeaters?
A: Yes. The SLR 5700 is Motorola's direct replacement for legacy XPR 8300 and XPR 8400 repeaters, offering vastly superior processing speeds, higher power efficiency, and a 1U chassis that takes up half the vertical rack space of the older 2U models.
Q: Can HiTech Wireless program and tune my duplexer before shipping?
A: Yes. Our certified RF technicians can configure codeplugs, program repeater channel parameters, and precision-tune your duplexer to your exact licensed transmit and receive frequencies prior to dispatch.
