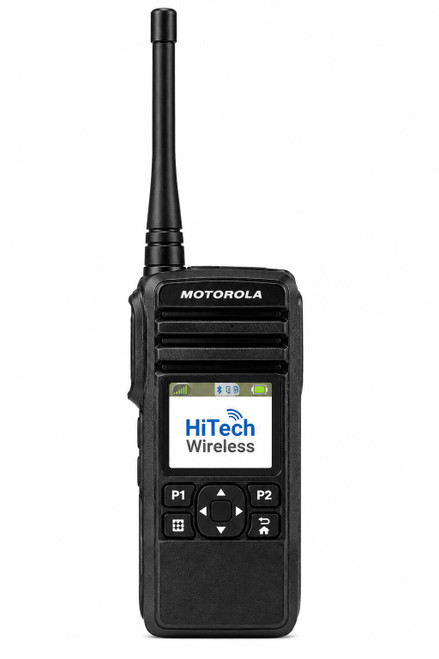

Motorola DTR700 900 MHz Digital Two-Way Radio
The Motorola DTR700 is a 1-watt, 900 MHz digital business two-way radio designed for reliable license-free communications within commercial facilities and on-site operations. With 50 channels, Frequency Hopping Spread Spectrum (FHSS), private and group calling, a full-color display, IP54 protection and up to 16.5 hours of typical battery life, the DTR700 gives business teams a flexible alternative to conventional analog radios.
Designed for retail, hospitality, education, restaurants, property management, warehouses and other commercial environments, the DTR700 supports one-to-one private calls, group communications, contact lists, Call Alert, Quick Text, scanning and remote radio management features.
Motorola DTR700 Key Features
- 900 MHz license-free operation: Uses the 900 MHz ISM band for business communications without conventional FCC business-radio licensing requirements.
- 50 channels: Supports flexible channel organization for departments, teams and workgroups.
- 1-watt RF output: Designed for on-site digital communications.
- FHSS digital technology: Frequency Hopping Spread Spectrum helps provide reliable digital communications and separation from conventional analog radio traffic.
- Private and group calling: Supports digital one-to-one private calls and one-to-many group communications.
- Up to 200 contact entries: Configure individual private contacts, private groups and public groups.
- Full-color display: Full-graphic backlit display provides access to contacts, channels and radio functions.
- Up to 16.5 hours typical battery life: Based on a 5/5/90 duty cycle at maximum transmitter power; actual runtime varies by use.
- IP54 rated: Designed for commercial environments where dust and water exposure may occur.
- Rugged construction: Tested to applicable MIL-STD-810 C, D, E, F and G environmental methods.
- Scan: Monitor groups included in a pre-programmed scan list.
- Quick Text: Supports up to 10 programmed short text messages.
- Call Alert: Notify another radio user before initiating a call.
- Over-the-air contact cloning: Helps simplify contact configuration across compatible DTR radios.
- Remote radio functions: Supports Remote Monitoring and Remote Enable/Disable when properly configured.
License-Free 900 MHz Digital Communications
The DTR700 operates in the license-free 900 MHz ISM band using digital Frequency Hopping Spread Spectrum technology. For organizations that want an on-site business radio system without conventional frequency coordination and radio licensing, the DTR700 provides a straightforward digital communications platform.
A configurable four-digit Radio Profile ID can help separate a radio fleet from nearby DTR users. Up to 10,000 Profile ID values are available. Proper programming is important when deploying multiple departments or integrating DTR700 radios with an existing DTR fleet.
Private, Group and Team Calling
The DTR700 supports multiple calling modes to match different workflows.
- Digital One-to-One Private Calling: Communicate directly with a specific radio user.
- Digital One-to-Many Group Calling: Communicate with radios assigned to the same compatible group configuration.
- Private Groups: Configure selected radio IDs so only members of the designated group participate in the conversation.
- Public Groups: Allow appropriately configured radios on the same channel and hopset to participate in group communications.
- Private Reply: Allows a user to initiate a private response to another radio after group traffic when properly configured.
Coverage for On-Site Business Operations
Motorola specifies coverage of up to 350,000 square feet or 30 floors indoors with the standard whip antenna. Actual communication range depends on building construction, terrain, environmental conditions, radio placement and other RF conditions, so quoted coverage should be treated as a maximum reference rather than a guaranteed operating range.
Rugged, Compact Design
The Motorola DTR700 measures approximately 5.06 in. H × 2.2 in. W × 1.06 in. D and weighs approximately 7.87 oz. (223 g). The radio is IP54 rated and has been tested against applicable methods from MIL-STD-810 C, D, E, F and G covering conditions such as shock, vibration, temperature, humidity, rain and dust.
Color Display and Easy Navigation
A full-graphic, backlit color display provides a clear interface for contacts, channels and radio functions. Adjustable brightness and limited-keypad navigation make frequently used features easy to access without the complexity of a full-keypad professional radio.
Ideal Applications
- Employee and department communications
- Front desk and facilities coordination
- Inventory and stock-room communications
- Maintenance and engineering teams
- Housekeeping and guest-service operations
- Event coordination
- Security and property-management communications
- Restaurant front-of-house and back-of-house coordination
- School administration and facilities communications
Ideal Industries
- Retail stores
- Hospitality and hotels
- Restaurants and food service
- Schools and education
- Property and facility management
- Warehouses and distribution facilities
- Commercial offices
- Manufacturing and light industrial operations
- Security operations
- Event facilities
Technical Specifications
| Model | DTR700 |
|---|---|
| Manufacturer Part Number | DTS150NBDLAA |
| Radio Type | Digital portable business two-way radio |
| Frequency | 900 MHz ISM FHSS |
| Antenna Frequency Range | 902–928 MHz |
| Channels | 50 |
| RF Output | 1 W |
| Modulation | 8-level FSK, 900 MHz FHSS |
| Channel Spacing | 50 kHz |
| Specified Coverage | Up to 350,000 sq. ft. or 30 floors; actual range depends on conditions |
| Display | Full-graphic color backlit display |
| Contact Capacity | Up to 200 entries for private contacts and groups |
| Quick Text | Up to 10 programmed messages |
| Battery | 3.7 V lithium-ion |
| Typical Battery Life | Up to 16.5 hours under Motorola's specified 5/5/90 duty-cycle test conditions |
| Dimensions | 5.06 in. H × 2.2 in. W × 1.06 in. D (128.5 × 56 × 27 mm) |
| Weight | 7.87 oz. (223 g) |
| Ingress Protection | IP54 |
| Operating Temperature | -30°C to +60°C, radio only |
| Storage Temperature | -40°C to +85°C, radio only |
| Environmental Testing | Applicable MIL-STD-810 C, D, E, F and G methods |
| Warranty | Motorola Solutions standard 2-year warranty |
What's Included
- Motorola DTR700 digital two-way radio
- PMNN4578 2500 mAh lithium-ion battery
- PMAF4024 902–928 MHz whip antenna
- PMLN7939 swivel clip holster
- PMPN4469 single-unit charger kit
Included components are based on the current HiTech Wireless DTR700 configuration. Product packaging and manufacturer revisions may change.
Compatibility and Integration
The DTR700 is designed for Motorola DTR digital business-radio systems. Integration with existing or legacy DTR fleets may require matching the system's Profile ID, channel, frequency hopset, public/private group settings and radio IDs.
When adding DTR700 radios to an existing deployment, provide HiTech Wireless with your current radio configuration whenever possible. Existing radios may also be used as a reference when configuration or cloning is required.
Compatible DTR700 Accessories
- Motorola PMNN4578 2500 mAh Lithium-Ion Battery
- Motorola PMPN4465 6-Pocket Multi-Unit Charger
- Motorola PMAF4024 900 MHz Whip Antenna
- Motorola HKLN4599 Earpiece with In-Line Microphone and PTT
- Motorola HKLN4601 Surveillance Earpiece with In-Line Microphone and PTT
- Motorola HKLN4604 Swivel Earpiece with In-Line Microphone and PTT
Other supported Motorola DTR accessories include the PMAF4025 stubby antenna, HKKN4027 CPS programming cable, HKKN4028 cloning cable and compatible single-unit charging components.
Programming and Fleet Setup
Proper configuration is important when deploying multiple DTR700 radios or adding radios to an existing DTR system. Programming can include channel configuration, Profile ID, public or private groups, radio contacts, programmable-button assignments and related fleet settings.
HiTech Wireless offers basic radio programming for supported configurations. Custom or advanced programming requirements may require a separate quote. When matching an existing system, complete and accurate programming information should be supplied with the order.
Motorola DTR700 Warranty
The Motorola DTR700 carries a standard 2-year Motorola Solutions warranty. Warranty coverage is subject to Motorola Solutions' applicable terms and conditions.
Why Buy from HiTech Wireless?
- Commercial two-way radio specialists
- Help selecting compatible radios and accessories
- Programming assistance for business radio deployments
- Support for expanding and maintaining existing radio fleets
- Volume purchasing and quote assistance for business customers
Frequently Asked Questions
Does the Motorola DTR700 require an FCC radio license?The DTR700 operates in the license-free 900 MHz ISM band and does not require the conventional business-radio license associated with many VHF and UHF systems. Use remains subject to applicable FCC rules.
What frequency does the DTR700 use?The DTR700 operates in the 900 MHz ISM band using Frequency Hopping Spread Spectrum digital technology. Its standard Motorola antenna covers 902–928 MHz.
How many channels does the Motorola DTR700 have?The DTR700 supports 50 channels.
What is the range of the DTR700?Motorola specifies coverage of up to 350,000 square feet or 30 floors indoors with the standard whip antenna. Actual range depends on building construction, terrain, interference and other environmental conditions.
Can the DTR700 make private calls?Yes. The DTR700 supports digital one-to-one private calls as well as private and public group communications when the radios are properly configured.
Can the DTR700 work with an existing Motorola DTR fleet?It can be configured for mixed DTR fleets in supported applications. Compatibility depends on the existing radios and their Profile ID, channel, hopset, radio ID and public/private group settings. HiTech Wireless can help review an existing system before radios are programmed.
How long does the DTR700 battery last?Motorola specifies up to 16.5 hours of typical battery life based on a 5/5/90 operating profile at maximum transmitter power. Actual runtime varies with usage and operating conditions.
Is the Motorola DTR700 waterproof?No. The DTR700 is IP54 rated for protection against dust and water intrusion under the applicable test standard. It should not be described as waterproof or submersible.
Can the DTR700 be programmed by computer?Yes. Motorola provides Customer Programming Software support for DTR radios. The appropriate programming cable is required for wired computer programming.
What warranty does the DTR700 have?Motorola Solutions lists a standard 2-year warranty for the DTR700. Warranty coverage is subject to Motorola's applicable warranty terms.
Motorola DTR700 at a Glance
The Motorola DTR700 is a 50-channel, 1-watt 900 MHz FHSS digital business radio for license-free on-site communications. It supports private and group calling, up to 200 contacts, Quick Text, Call Alert, scanning, remote management functions, a full-color display, IP54 protection and up to 16.5 hours of typical battery life.
