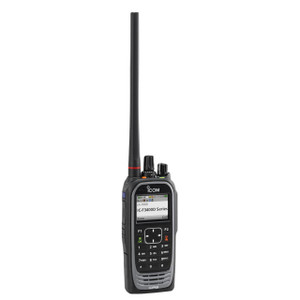

ICOM F4400DT RR IDAS UHF Portable Radio

Railroad Firmware Installed

The F4400 new features and functions are included all in one new small form factor size. SD Card, USB interface and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, in the dimmest of light to the brightest of sunshine. Icom is the choice when you want to take your communications to the next level.

The high-resolution color LCD enhances the visibility both in nature and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.

The F4400 series can record incoming and outgoing communications, and replay recorded communications. Add a 32GB microSD card and record up to 500 hours. The recorded audio is saved in “wav” format and allows user to replay on the radio or a PC. Users can optionally overwrite first call in first call out, if the card is full. The recording captures time-stamp and individual or group ID. Unit ID is captured on individually calls and group ID is captured on group calls. Users can also scroll to playback calls on the radio.

For emergency situations the F4400 series includes an emergency button and five emergency functions: man down, motion detection, stationary detection, lone worker and power OFF emergency. The motion/stationary sensor sensitivity level is programmable in 10 levels for each function.

The F4400DT RR series provides NXDN CAI-based IDAS digital model operation in IDAS conventional and multi-site conventional.

_
General Features

• *Special railroad firmware installed

• Basic LTR® / Conventional / IDAS
• GPS built-in
• Bluetooth™ built-in
• Intuitive user interface
• High-resolution color LCD
• Digital voice recorder – record up to 500 hours with 32GB microSD card
• Man down, motion detection, stationary detection, lone worker and power OFF emergency
• AquaQuake™
• Audio equalizer*

Digital Features
• IDAS™ conventional
• IDAS single-site and multi-site Type D trunking (optional upgrade)
• IDAS single-site and multi-site Type C trunking (optional upgrade)*
• Voting mode scanning
• NXDN® Digital Air Interface
• AMBE+2™ VOCODER
• Individual & group selective call
• Strongest site search
• Over-the-Air Programming (requires software & license)*

Included in Package:

• Battery Pack (BP-283)
• Belt clip (MB-133)
• Antenna & charger purchased separately
• Owner’s manual
• Warranty: 3 years
