ICOM
Product Description

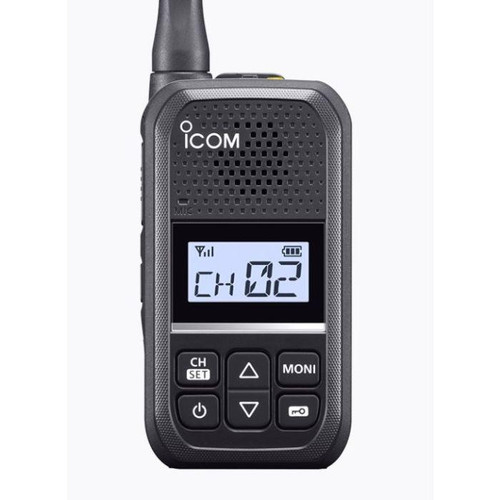

The Icom IC-F200 is a compact UHF business two-way radio designed for straightforward day-to-day communications in commercial and light-industrial environments. Operating from 450-470 MHz with 16 channels and up to 2 watts of transmit power, the IC-F200 combines a lightweight 5.5 oz design with IP54 dust and water resistance, MIL-STD 810G ruggedness, a clear front-panel display and USB Type-C™ charging.
Icom IC-F200 Key Features
- UHF 450-470 MHz frequency coverage
- 16 programmable channels
- Up to 2.0 W transmit power
- Approximately 15 hours of operation with the BP-304A lithium-ion battery
- USB Type-C™ charging directly through the radio
- IP54 dust and water resistance
- MIL-STD 810G rugged construction
- 600 mW internal speaker audio output
- 4-digit, 14-segment display
- Two programmable keys
- CTCSS and DTCS tone squelch
- VOX hands-free operation with compatible accessories
Compact UHF Radio for Everyday Business Communications
The IC-F200 is built for users who need a simple, compact portable radio without unnecessary complexity. Its body measures approximately 3.7 inches high without the antenna and weighs approximately 5.5 oz, making it well suited for personnel who carry a radio throughout an entire shift.
A high-visibility 4-digit, 14-segment display provides channel and operating information, while the simplified front-panel controls help make the radio easy to use across teams with varying levels of radio experience.
15-Hour Battery Operation and Flexible USB-C Charging
The supplied BP-304A lithium-ion battery has a typical capacity of 2350 mAh and provides approximately 15 hours of operating time. The battery can be charged using the compatible BC-262 charging cradle, and the radio also supports direct USB Type-C™ charging for added flexibility.
The BP-304A can be fully charged with the BC-262 charging cradle in approximately five hours.
Built for Commercial Work Environments
The lightweight polycarbonate housing is rated IP54 for resistance to dust and water and is designed to meet MIL-STD 810G environmental testing requirements. This combination makes the IC-F200 suitable for routine communications in warehouses, construction operations, hospitality properties, retail locations, schools, facilities and other commercial environments.
Clear Audio and Hands-Free Options
A 600 mW internal speaker provides strong audio for day-to-day communications. The IC-F200 also supports CTCSS and DTCS tone squelch and includes two programmable keys.
For applications requiring hands-free communications, the radio includes VOX functionality and supports compatible Icom headsets, speaker microphones and earphone microphones. Some headset configurations require an appropriate PTT or VOX adapter cable.
Ideal Applications
- Warehouses and distribution facilities
- Construction and maintenance teams
- Manufacturing and factory operations
- Hotels and hospitality properties
- Retail stores and supermarkets
- Schools and institutional facilities
- Parking and facilities operations
- General commercial communications
Technical Specifications
| Model | IC-F200 |
|---|---|
| Radio Type | UHF analog portable two-way radio |
| Frequency Coverage | 450-470 MHz |
| Channels | 16 |
| Transmit Power | 2.0 W |
| Channel Spacing / Emission | USA: 11K0F3E, 12.5 kHz narrowband |
| Internal Speaker Output | 600 mW typical at 5% distortion, 4 Ω |
| Battery | BP-304A lithium-ion, 2350 mAh typical |
| Operating Time | Approximately 15 hours |
| Charging | BC-262 charging cradle and direct USB Type-C™ charging |
| Ingress Protection | IP54 |
| Ruggedness | MIL-STD 810G |
| Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
| Dimensions Including Antenna | 6.1 × 2.0 × 1.1 in (156.0 × 50.0 × 26.7 mm) |
| Dimensions Excluding Antenna | 3.7 × 2.0 × 1.1 in (94.0 × 50.0 × 26.7 mm) |
| Weight | Approximately 5.5 oz (157 g) |
What Is Included
- Icom IC-F200 UHF portable radio
- BP-304A lithium-ion battery pack
- MB-127 belt clip
- BC-262 charging cradle
- BC-263A USB Type-C™ AC adapter for the U.S. configuration
Compatible Icom Accessories
The IC-F200 supports a range of compatible Icom audio, charging and battery accessories. Compatibility should be confirmed for the exact accessory configuration before ordering.
- BP-304A lithium-ion replacement battery
- BC-262 charging cradle
- BC-264 battery charger
- BC-268 multi-charger
- BC-263A USB Type-C™ AC adapter
- HM-153LS earphone microphone
- HM-166LS earphone microphone
- HM-183LS speaker microphone
- HM-186LS speaker microphone
- HS-94 ear-hook headset
- HS-95 neck-arm headset
- HS-97 throat microphone headset
- OPC-2006LS conversion cable for compatible VOX headset configurations
- OPC-2328 PTT switch cable for compatible headset configurations
Programming from HiTech Wireless
HiTech Wireless can provide basic radio programming for up to 16 channels at no additional programming charge. Complete and accurate programming information must be supplied with the order. More advanced or custom programming requirements may require a separate quote.
Warranty
The Icom IC-F200 is backed by a 2-year manufacturer warranty. Warranty coverage is subject to Icom's applicable terms and conditions.
Why Buy from HiTech Wireless?
- Professional two-way radio product support
- Programming assistance for business radio systems
- Help selecting compatible batteries, chargers and audio accessories
- Support for single-radio purchases and larger business deployments
Frequently Asked Questions
What frequency range does the Icom IC-F200 use?The IC-F200 operates in the UHF 450-470 MHz range.
How many channels does the IC-F200 have?The radio supports 16 channels.
What is the transmit power of the IC-F200?The IC-F200 provides up to 2.0 watts of transmit power.
How long does the IC-F200 battery operate?Icom specifies approximately 15 hours of operation with the BP-304A lithium-ion battery under its stated operating conditions.
Can the IC-F200 be charged with USB-C?Yes. The radio supports direct USB Type-C™ charging. The USB connection is intended for charging rather than data transfer.
Is the IC-F200 waterproof?No. The radio carries an IP54 rating for dust and water resistance. It should not be described as waterproof or submersible.
Does the IC-F200 support a speaker microphone or headset?Yes. Icom lists several compatible speaker microphones, earphone microphones and headsets. Certain headset combinations require an OPC-2006LS or OPC-2328 interface cable.
Can HiTech Wireless program the IC-F200?Yes. HiTech Wireless can provide basic programming for up to 16 channels. Custom or more advanced programming requirements may be quoted separately.
