Product Description

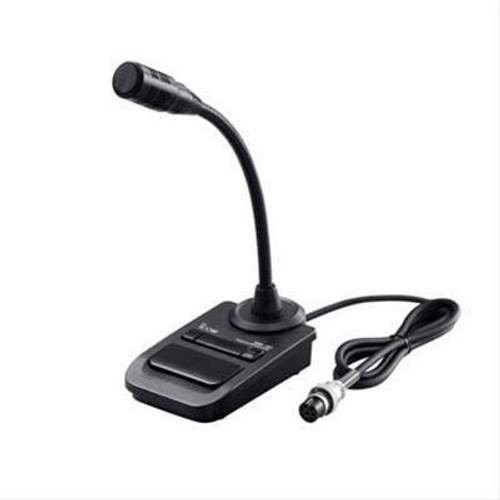

At a Glance: The Icom SM-30 is a compact, unidirectional electret condenser desktop microphone built for base station dispatch and amateur radio transceivers. Equipped with a flexible gooseneck, selectable low-cut filter, and a standard 8-pin round metal connector, it provides clear voice audio while taking up minimal desk space.
Engineered for commercial dispatch desks, aviation base stations, and ham radio shacks, the Icom SM-30 Desktop Microphone delivers clean audio without the bulk of traditional desk mics. Its cardioid unidirectional pickup pattern focuses directly on the operator's voice while rejecting distracting background room noise, office chatter, and fan hum.
The weighted base includes responsive Push-to-Talk (PTT) and PTT-Lock switches with a red LED lock indicator for hands-free transmission. A bottom-mounted microphone gain trimmer and low-cut slider let technicians fine-tune output levels and eliminate low-frequency rumble before the signal reaches the transmitter.
Key Features & Operational Benefits
- Unidirectional Cardioid Pickup: Rejects off-axis room noise and reverberation, directing the electret element at your voice for clear audio reports.
- Selectable Low-Cut Filter: A bottom-mounted slider cuts low-end frequencies below 170 Hz to prevent muddy audio, bass boom, and HVAC rumble.
- Adjustable Output Gain Trimmer: Adjust mic gain directly on the bottom chassis to match your radio's input sensitivity without causing clipping.
- PTT & PTT Lock Switches: Features a momentary talk switch along with a dedicated lock button and red LED indicator for long transmissions.
- Flexible Gooseneck Stem: Adjust mic position easily while keeping the weighted desktop base stable on your console.
- Standard 8-Pin Round Plug: Connects directly to Icom base transceivers with 8-pin round sockets and adapts easily to modular RJ45 rigs with an optional adapter.
Technical Specifications
| Manufacturer | Icom Inc. |
| Model Series | SM-30 (SM30) |
| Element Type | Electret Condenser Microphone |
| Polar Pattern | Unidirectional (Cardioid) |
| Output Impedance | 600 Ohms (±30% at 1 kHz) |
| Sensitivity | -44.0 dB ±4 dB (at 1 kHz, 0 dB = 1 V/Pa) |
| Connector Type | 8-Pin Round Metal Microphone Plug (Foster standard) |
| Cable Length | Approx. 39.4 inches (1.0 m) straight cable |
| Controls & Switches | PTT switch, PTT lock switch, mic gain trimmer, low-cut switch |
| Weight | Approx. 12.3 oz (350 g) |
| Warranty | Icom 1-Year Limited Manufacturer Warranty |
What’s in the Box
- 1x Icom SM-30 Desktop Gooseneck Microphone with integrated base
- 1x Attached 3.3 ft cable with 8-pin round connector
- 1x Instruction Sheet & Warranty Card
Compatibility & Recommended Adapters
- Direct 8-Pin Compatibility: Plugs directly into Icom base radios including IC-718, IC-7300, IC-7600, IC-7610, IC-7700, IC-7800, IC-9100, and IC-A220 aviation base stations.
- Modular RJ45 Radios (OPC-589): Use the genuine Icom OPC-589 adapter cable to connect the SM-30 to mobile units with 8-pin modular jacks (like IC-706, IC-7000, and IC-7100).
Frequently Asked Questions
Q: Does the SM-30 require an external battery or power supply?
A: No. Phantom power is drawn directly from pin 2 of the connected Icom transceiver's 8-pin microphone port, so no batteries or external DC adapters are needed.
Q: What is the difference between the Icom SM-30 and the SM-50?
A: The SM-30 is a compact, entry-level gooseneck mic with an electret element and simple PTT/PTT-lock keys. The larger SM-50 adds frequency up/down tuning keys on the base and a heavier dynamic element chassis.
Q: Can I use this with non-Icom radios like Yaesu or Kenwood?
A: Not directly. The SM-30 is wired specifically for Icom pinouts and requires DC voltage on the mic line. Connecting it to other radio brands requires an aftermarket pinout converter and blocking capacitor.
