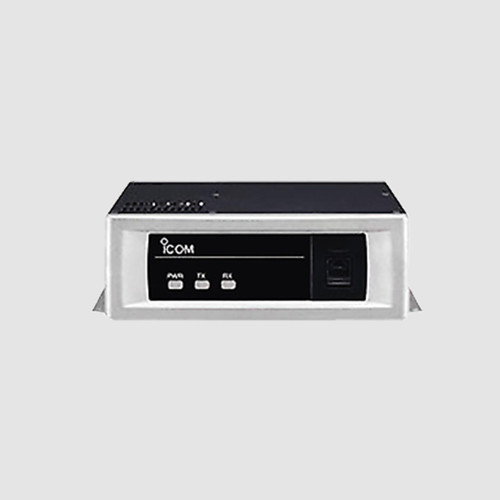

Icom UR-FR5300 VHF Analog & IDAS Digital Repeater Channel Module
The Icom UR-FR5300 is a 136–174 MHz VHF repeater channel module supporting analog FM and IDAS NXDN digital communications. Install it in an IC-FR5300 to add a second independent repeater channel, or use it as an independent repeater with the appropriate power, RF equipment and installation.
Ordering note: This listing is for the UR-FR5300 channel module. The IC-FR5300 rack chassis, front-panel display and controls belong to the complete repeater assembly and are not part of this module listing.
Key Features
- VHF coverage: 136–174 MHz.
- Analog and digital operation: Analog FM and IDAS NXDN support migration from an analog radio system.
- Selectable RF output: 50 W, 25 W and 5 W for the USA version.
- 32 programmable channels in one zone: Store multiple operating configurations.
- Flexible installation: Add a second RF channel to an IC-FR5300 or configure an independent repeater installation.
- System expansion options: Optional controller hardware and application-specific software support networked IDAS configurations.
Benefits & Ideal Applications
Expand an existing IC-FR5300 installation without adding another full rack chassis, or build a compact VHF repeater installation around the module. Suitable applications include industrial facilities, transportation operations, campuses, utilities and commercial radio systems using compatible VHF analog or NXDN equipment.
Channel capacity explained: The 32 memory channels store configurations; they do not provide 32 simultaneous repeater paths. Adding this module to an IC-FR5300 creates a two-channel repeater installation with two independently operating RF modules.
Compatibility & Installation
- Host repeater: Icom identifies the IC-FR5300 for installation as a second repeater channel.
- Subscriber radios: VHF analog FM or compatible NXDN radios with matching frequencies and signaling settings.
- Independent operation: Requires an appropriate DC power source, antenna system, RF filtering or isolation as needed, and programming.
- Network operation: Requires the correct UC-FR5300 controller version, software and system configuration.
Provide your existing repeater model, transmit and receive frequencies, operating mode and intended duty cycle when requesting a quote. HiTech Wireless can help identify the components needed for your installation.
Technical Specifications
| Manufacturer / Model | Icom / UR-FR5300 |
|---|---|
| Product type | VHF analog/digital repeater channel module |
| Frequency range | 136–174 MHz |
| Operating modes | Analog FM and IDAS NXDN digital |
| Programmable capacity | 32 channels / 1 zone |
| RF output settings | 50 W / 25 W / 5 W; regional versions differ |
| Analog sensitivity | 0.25 µV typical at 12 dB SINAD, TIA-603 |
| Digital sensitivity | 0.32 µV EMF typical at 1% BER, EN301 166 |
| Dimensions, W × H × D | 176 × 60 × 194 mm / 6.9 × 2.4 × 7.6 in, excluding projections |
| Approximate weight | 2.2 kg / 4.9 lb |
Specifications vary by regional version. Confirm the supplied module version and installation requirements before ordering.
Package Contents
- Icom UR-FR5300 VHF repeater channel module.
Controller boards, software, microphones, external speakers, power equipment and antenna-system components are separate options unless explicitly included in your quotation.
Recommended Accessories
System Controllers & Software
- Icom UC-FR5300 Network/Controller Board: Adds networking and system functions according to the controller version and installed software.
- Icom CF-FR5300SC: Simulcast software supplied on a CF card for an appropriately equipped IDAS system.
- Icom CF-FR5000MC: Multi-site conventional software.
- Icom CF-FR5000MT: Type-D multi-site trunking software.
- Icom UX-241 GNSS Antenna: Supplies the GNSS reference used by a suitably equipped simulcast installation.
Simulcast requires the appropriate controller/software combination and GNSS antenna. Controller versions may already include the required software card; confirm the configuration before ordering separately.
Programming, Microphones & Speakers
- Icom OPC2344 Programming Cable — programming cable for the IC-FR5300 platform; appropriate programming software is also required.
- Icom SM-26 Desktop Microphone — desktop PTT microphone with monitor controls for a compatible base/repeater installation.
- Icom HM-152 Hand Microphone: Optional hand microphone for a compatible installation.
- Icom SP-35 / SP-35L External Speaker: External speaker options with 2 m or 6 m cable, respectively.
Microphone and speaker connection depends on the completed installation. Confirm the connection arrangement when ordering for an independent module.
Product Literature
Download the Icom IC-FR5300 / IC-FR6300 Series Brochure. This family brochure includes UR-FR5300 module information and optional system components.
Related Products
Browse Icom FR5300 accessories for related installation components. For a complete IC-FR5300 repeater or a UHF UR-FR6300 module, request a configuration-specific quote.
Frequently Asked Questions
Is the UR-FR5300 the same as the IC-FR5300?
No. The UR-FR5300 is the RF channel module. The IC-FR5300 is the complete rack-style repeater assembly.
Can the module operate without the rack chassis?
Yes. Icom specifies independent repeater operation. A working installation still requires suitable power, programming and RF-system components.
Does it support DMR?
The digital mode described here is IDAS NXDN. Select compatible NXDN subscriber radios for digital operation.
Are networking and simulcast included?
No. These functions require optional controller hardware, the correct software and system configuration. Simulcast also requires the appropriate GNSS reference.
