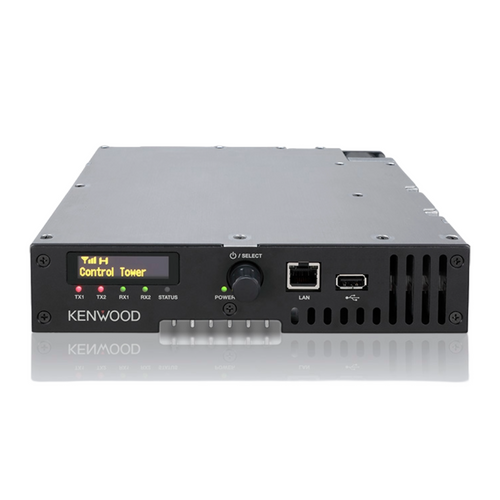

KENWOOD NXR-1700 VHF DMR, NXDN and Analog Repeater
The KENWOOD NXR-1700 is a compact, network-ready VHF conventional repeater for professional radio systems operating from 136 to 174 MHz. It can be configured for FM analog, DMR Tier II or NXDN conventional operation, helping businesses modernize an existing system without dedicating a full rack-width position to each repeater.
With adjustable output from 1 to 50 watts, up to 32 channels, a built-in IP network interface and a large front-panel OLED display, the NXR-1700 provides a flexible foundation for single-site and eligible multisite VHF communications systems.
Why Choose the NXR-1700?
- 136–174 MHz VHF frequency coverage
- Adjustable 1–50 watt RF output
- 50 watts at 50% duty cycle or 25 watts at 100% duty cycle
- Up to 32 programmable channels
- FM analog, DMR Tier II or NXDN conventional configuration
- Mixed analog and digital operation with the selected digital protocol
- Compact half-width design allows two repeaters in a 1U, 19-inch rack space
- Built-in IP network adapter for system integration and remote management
- 1.71-inch OLED display for useful operating and diagnostic information
- Thermal-controlled cooling fan
Designed for Analog-to-Digital Migration
The NXR-1700 supports conventional FM analog operation and can be ordered or configured for one supported digital protocol: NXDN conventional or DMR Tier II. Mixed analog/digital operation helps organizations transition subscriber radios and users in stages instead of replacing an entire radio system at once.
Protocol, licensing, programming and software-option requirements should be reviewed when the system is quoted. DMR and NXDN are programmed one at a time on an individual repeater.
Compact Rack-Space Design
The half-width NXR-1700 measures approximately 8.44 inches wide and only 1.73 inches high with projections. Two units can be installed side by side within a 1U-high, 19-inch rack arrangement when the appropriate mounting hardware and system design are used.
This space-efficient format is useful for equipment rooms, dispatch centers, remote sites and expansion projects where rack capacity is limited.
Front-Panel OLED Status Display
The 1.71-inch OLED display can show system information such as channel number or name, RF frequency, MAC or IP address, RSSI, transmit-power status, firmware information, electronic serial number, license information, errors and other operating conditions.
IP Networking and Remote System Management
A built-in IP network adapter supports network-based system integration without requiring a separate basic network adapter. Supported functions include multicast routing, SNMP reporting, HTTPS security, IP remote management and an IP remote-control interface.
Depending on system configuration, software, licenses and firmware, eligible applications can include remote monitoring, control, programming, test-console operation, IP console integration, over-the-air programming and digital SIP integration.
Conventional Multisite and Redundancy Capabilities
The NXR-1700 platform supports hot-standby system redundancy and can be integrated into eligible conventional IP networks. Software-option capabilities include multisite conventional IP networking for as many as 16 sites and voting-repeater systems with as many as 15 receivers.
Network topology, software licenses, subscriber compatibility and feature availability must be confirmed during system design.
Compatible Migration Path
KENWOOD identifies the NXR-1700 as IP-network compatible with eligible NXR-710 and TKR-D710 series repeater systems. This can support replacement, expansion or phased migration projects, subject to protocol, firmware, software and system-engineering requirements.
Digital and Analog Capabilities
Common Digital Functions
- Built-in AMBE+2 vocoder
- Mixed analog and digital operation
- Site roaming support
- Repeat encrypted voice and data using supported system configurations
- User-list and site-group tables
NXDN Configuration
- 6.25 kHz very-narrow and 12.5 kHz narrow FDMA operation
- NXDN conventional operation with applicable software option
- Radio access control with compatible subscriber firmware
- Non-repeat simplex and semi-duplex modes
DMR Configuration
- DMR Tier II conventional operation with applicable software option
- Two-slot TDMA operation in 12.5 kHz channel bandwidth
- DMR enhanced-encryption repeat capability
- Call interruption
FM Analog Configuration
- Conventional FM operation
- Multiple QT and DQT signaling
- CW identification
- Hang timer
Connections and Integration
- LAN connection for IP networking
- USB-A connection for supported audio accessories
- DB25 external input/output connection
- G.711 audio codec support for eligible test-console and third-party applications
- External 10.8–15.6 VDC power source required
- 50-ohm antenna-system impedance
Common Applications
- Manufacturing and industrial facilities
- Utilities and public works
- Transportation and logistics operations
- Schools, campuses and healthcare facilities
- Hospitality and property-management systems
- Public-safety support and local-government operations
- Commercial dispatch and wide-area conventional systems
- Replacement or expansion of eligible KENWOOD VHF repeater networks
KENWOOD NXR-1700 Technical Specifications
| Frequency range | 136–174 MHz |
|---|---|
| Channel capacity | 32 channels |
| RF output power | 1–50 watts; 50 W at 50% duty cycle or 25 W at 100% duty cycle |
| Analog channel spacing | 30 / 25 / 15 / 12.5 kHz; availability subject to regional regulations |
| Digital channel spacing | 12.5 / 6.25 kHz |
| PLL channel step | 6.25 / 5 / 3.125 / 2.5 kHz |
| Frequency stability | ±0.5 ppm |
| Power supply requirement | 10.8–15.6 VDC |
| Standby current | 0.6 A |
| Transmit current | 12.0 A at maximum power; 9.0 A at 25 W |
| Operating temperature | -22°F to 140°F (-30°C to 60°C) |
| Antenna impedance | 50 ohms |
| Dimensions with projections | 8.44 × 1.73 × 9.56 in. (214.5 × 44.0 × 242.9 mm) |
| Dimensions without projections | 8.21 × 1.73 × 8.33 in. (208.5 × 44.0 × 211.5 mm) |
| Net weight | 4.18 lb. (1.9 kg) |
| FCC ID | K44513100 |
| ISED certification number | 282F-513100 |
Receiver and Transmitter Specifications
| DMR sensitivity, 5% BER | 0.22 µV |
|---|---|
| DMR sensitivity, 1% BER | 0.28 µV |
| NXDN sensitivity, 12.5 / 6.25 kHz at 3% BER | 0.25 / 0.20 µV |
| Analog sensitivity, 12 dB SINAD | 0.25 µV |
| Analog selectivity, 25 / 12.5 kHz, TIA603 | 83 / 77 dB |
| Analog selectivity, 25 / 12.5 kHz, TIA603E | 80 / 50 dB |
| FM hum and noise, 25 / 12.5 kHz | 55 / 50 dB |
| Intermodulation | 80 dB |
| Spurious rejection | 90 dB |
| Transmitter spurious emission | -80 dB |
| Audio distortion | 1% |
| DMR protocol | ETSI TS 102 361-1, -2 and -3 |
Environmental Test Information
The manufacturer lists applicable MIL-STD-810F, 810G and 810H procedures for high temperature, low temperature and temperature shock. These references apply to the specific environmental tests identified by KENWOOD and should not be interpreted as a claim that every MIL-STD-810 procedure has been completed.
Important Ordering Information
Repeater systems require engineering for frequency coordination, programming, antenna-system components, duplexing or filtering, feed line, mounting, DC power, lightning protection and site-specific installation. These supporting components are not assumed to be included with the repeater unless they are expressly listed on the quote or order.
Digital protocol, software options, licenses, firmware compatibility, output-power requirements and network features must be selected and verified before ordering. Contact HiTech Wireless for a system review and a configuration matched to your operating frequencies and coverage goals.
Package Contents
Package contents have not been confirmed from the available manufacturer brochure. Refer to the HiTech Wireless quotation or order confirmation for the exact equipment, accessories, software and services included.
