MOTOROLA
Product Description

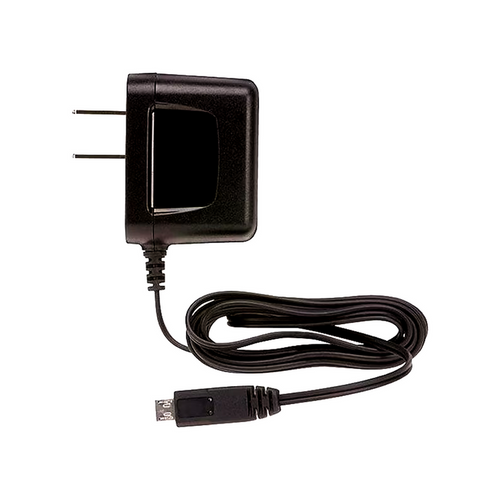

Motorola PS000228A01 Micro-USB Power Supply
The Motorola PS000228A01 is a compact Micro-USB AC power supply designed for compatible Motorola radio charging equipment. It accepts worldwide input voltage and provides a regulated 5V DC, 500mA output.
This power supply is commonly used with compatible Motorola DTR and RM Series charging trays. Radio compatibility depends on the charging tray or device being powered, so always verify the required part number and electrical specifications before ordering.
Important: The PS000228A01 provides a maximum output of 500mA. It is not automatically interchangeable with Motorola 5V/1A adapters such as the PS000227A11, PA-57B, or 25009298001.
Key Features
- Genuine Motorola Solutions power supply
- Motorola part number: PS000228A01
- Power-supply model: SSW-3046US
- Micro-USB power connection
- Regulated 5V DC, 500mA output
- Wide-range 100–240V AC input
- North American US wall plug
- Designed for indoor, dry-location use
Specifications
| Manufacturer | Motorola Solutions |
|---|---|
| Part Number | PS000228A01 |
| Power-Supply Model | SSW-3046US |
| Product Type | Micro-USB AC power supply |
| AC Input | 100–240V AC, 50/60Hz, 0.15A |
| DC Output | 5.0V DC, 500mA |
| Maximum Output Power | 2.5 watts |
| Connector | Micro-USB |
| Plug Type | US / North American |
| Operating Location | Indoor, dry locations only |
Compatible Applications
The PS000228A01 may be used with:
- Compatible Motorola DTR600 and DTR700 charging systems
- Compatible Motorola DTR single-unit charging trays, including applicable PMPN4468 configurations
- Select Motorola RM Series charging trays that specify a 5V/500mA Micro-USB power supply
- Other Motorola equipment that specifically lists PS000228A01 as an approved power supply
Compatibility note: A radio model may require a separate charging tray or cradle. Confirm that both the charging tray and power-supply requirements match your equipment.
What Is Included
- One Motorola PS000228A01 Micro-USB power supply
Charging trays, radios, batteries, and other accessories are not included unless specifically stated elsewhere in the product listing.
Important Replacement Information
Do not select a replacement using the Micro-USB connector alone. The voltage, available current, connector wiring, and Motorola-approved application must all be compatible.
- PS000228A01: 5V DC, 500mA
- PS000227A11: 5V DC, 1A
- 25009298001 / PA-57B: 5V DC, 1A
Frequently Asked Questions
Is the PS000228A01 the same as the PS000227A11?
No. Both use a 5V output, but the PS000228A01 is rated at 500mA while the PS000227A11 is rated at 1A. They should not be treated as direct replacements unless Motorola approves the substitution for the specific equipment.
Can this power supply operate from a 220V outlet?
Yes. The electrical input range is 100–240V AC, 50/60Hz. A suitable physical plug adapter may be required outside North America.
Does this power supply charge a radio by itself?
It depends on the radio and charging configuration. In many applications, the power supply connects to a compatible charging tray or cradle rather than charging the battery independently.
Is the PS000228A01 a rapid charger?
The PS000228A01 is the AC power-supply component. Charging speed is determined by the complete Motorola charging system, including the tray, radio, and battery.
Need Help Identifying Your Charger?
Compare Motorola adapter numbers, voltage ratings, output current, and replacement information in our charger reference guide.
