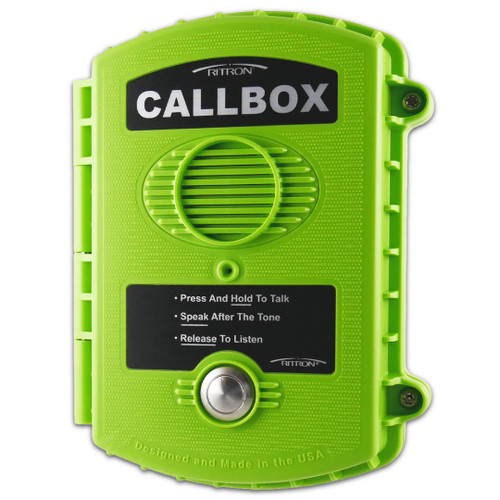

Ritron RQX-117 VHF Q Series Two-Way Radio Callbox

The Ritron RQX-117 VHF Callbox is a rugged wireless two-way radio callbox designed to place instant push-to-talk communication exactly where it is needed. This VHF analog callbox helps improve safety, response times, visitor assistance, access control, and workforce efficiency without costly wiring, trenching, or construction.

Key Features

• VHF 150–165 MHz business band operation
• 2-way push-to-talk communication with radio-equipped staff
• 2 watts transmit power when used with compatible AC power
• Battery powered or external AC power capable
• Weather-resistant, gasket-sealed polycarbonate enclosure
• Built-in internal antenna with vandal-resistant design
• Built-in relay control for gates, doors, or strobe lights
• Recordable greeting and alert messages
• Sensor input for motion, gate movement, tamper, or vehicle detection
• Field or PC programmable for flexible setup
• Adjustable speaker volume, low battery alert, call tone, and external power fail alert

Includes

• Ritron RQX-117 VHF analog callbox
• Built-in antenna
• D-cell battery tray for 3 alkaline D-cell batteries, batteries not included
• 60201124 external power cable assembly
• Metal wall-mount brackets for flat-surface mounting
• Integrated speaker and microphone
• Aluminum push-to-talk button
• T-25 Torx bit

Compatibility & Applications

The RQX-117 is ideal for fixed-location communication points where staff, visitors, delivery drivers, or customers need to reach personnel using existing two-way radios.

• Entry and exit doors
• Schools, campuses, daycare facilities, and churches
• Manufacturing plants and factory floors
• Warehouses, delivery docks, and secured areas
• Gates, parking garages, and access-control locations
• Golf courses, resorts, amusement parks, and walking trails
• Health care facilities, construction sites, and maintenance areas

Benefits & Why Buy

• No wiring required: Deploy communication points without trenching or construction.
• Improves response times: Allows visitors and employees to contact radio-equipped staff instantly.
• Durable outdoor-ready design: High-impact, gasket-sealed polycarbonate housing helps protect the callbox in demanding locations.
• Access-control capable: Built-in relay can support remote control of gates, doors, or warning devices.
• Flexible power options: Use alkaline D-cell batteries for stand-alone operation or compatible external AC power for always-on use.
• Compact Q Series design: Hinged-door enclosure provides service access while maintaining a rugged, vandal-resistant profile.

Important Notes

• Alkaline D-cell batteries are not included.
• The RPS-EXPO external AC power adapter is sold separately.
• 7 Series callboxes include the 60201124 cable assembly for external power connection.
• Programming may be required to match your existing VHF radio system.
• Confirm frequency, signaling, and license requirements before ordering.

Frequently Asked Questions

What is the Ritron RQX-117 used for?

The Ritron RQX-117 is used as a fixed-location VHF two-way radio callbox for gates, doors, docks, warehouses, schools, plants, service areas, and other locations where users need quick push-to-talk communication with radio-equipped personnel.

Does the RQX-117 require wiring?

No. The callbox can operate on alkaline D-cell batteries, making it suitable for wireless stand-alone installation. It can also be powered with a compatible external AC power adapter.

What frequency range does the RQX-117 use?

The RQX-117 operates in the VHF 150–165 MHz range.

Can the RQX-117 control a gate or door?

Yes. The 7 Series callbox includes built-in relay control that can be used for compatible gate, door, or strobe-light applications.

Is the Ritron Q Series callbox weather resistant?

Yes. The Q Series uses a gasket-sealed, high-impact polycarbonate enclosure designed for durable fixed-location use.
