Product Description

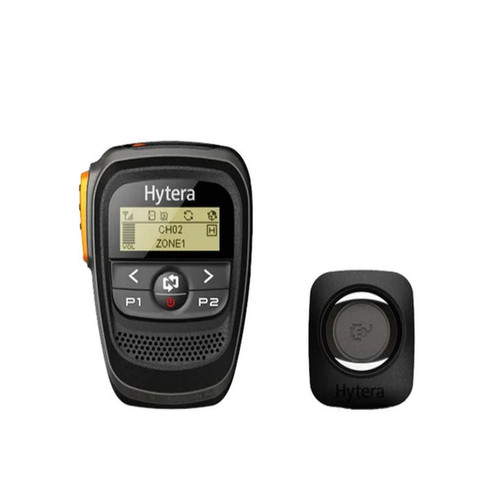

Hytera SM27W1 Bluetooth Speaker Microphone with LCD Display (IP54)
The :contentReference[oaicite:0]{index=0} SM27W1 Bluetooth Speaker Microphone is a wireless remote palm microphone designed to deliver hands-free communication and enhanced mobility when paired with compatible Hytera H-Series mobile radios. It is ideal for professionals who need to stay connected while driving, managing equipment, or operating in fast-paced environments.
This compact and rugged accessory features an integrated LCD display and a large Push-to-Talk (PTT) button, providing clear audio and intuitive control up to 32 feet from the connected radio. The SM27W1 allows users to maintain full communication capability without reaching for the radio, improving safety and operational efficiency.
The included dash mounting clip doubles as a charging dock and connects to a vehicle’s USB power port using a 39-inch USB to Micro-USB charging cable. The SM27W1 works seamlessly with Bluetooth-enabled Hytera mobile radios and can also be used with non-Bluetooth models when paired with the ADA-01 Bluetooth Adapter. Its durable design and wireless functionality make it well-suited for fleet vehicles, logistics, field service, and other on-the-move applications.
Key Features
- Bluetooth® wireless remote speaker microphone for mobile radios
- Integrated LCD display for status and control visibility
- Dedicated Push-to-Talk (PTT) and emergency buttons
- Clear audio transmission up to 32 ft from the radio
- Dash mounting clip that functions as a charging base
- USB-powered charging for vehicle installations
- Compatible with Bluetooth-enabled and non-Bluetooth Hytera mobile radios
- Compact, rugged design for professional vehicle environments
Technical Specifications
| Model | SM27W1 |
|---|---|
| Accessory Type | Bluetooth Remote Speaker Microphone |
| Dimensions | 3.4 × 2.5 × 1.7 inches |
| Weight | Approx. 4.2 oz |
| Color | Black |
| PTT Key | Yes |
| Emergency Key | Yes |
| Microphone Sensitivity | –42 ±3 dB @ 1 kHz (0 dB = 1 V/Pa) |
| Speaker Power | 2 W (rated); 2.5 W (max.) |
| Speaker Impedance | 4 Ω ±15% @ 1 kHz |
| Speaker Frequency Response | 83 ±4 dB @ 1 kHz (1 W / 100 cm) |
| Communication Protocol | Bluetooth® V4.0 |
| Bluetooth Range | 26 – 32 ft |
| Battery Life | ≥ 15 hours (5/5/90 duty cycle) |
| Charging Time | ≤ 3.5 hours |
| Certification | CE, FCC, IC |
| IP Rating | IP54 |
| Operating Temperature | -4°F to 140°F |
| Storage Temperature | -4°F to 140°F |
Compatible
- Compatible with Hytera CK03-E and CK02-E Car Kits or Portable Radios
Typical Applications
- Fleet vehicles and mobile workforces
- Logistics and transportation
- Field service and utilities
- Warehousing and distribution
- On-the-road professional communications
Request a Quote
Rebates
Documents
1-year manufacturer's warranty.
